    Self Cleaning Disc Stack Oil Separator / Fish Oil Filter Machine ZYDH270

    Self Cleaning Disc Stack Oil Separator Fish Oil Filter Machine


    Introduction


    Disk stack centrifuges are high-speed centrifuges for the mechanical separation and clarification of mixtures comprising solids and liquids. These machines can be used in a wide range of applications. Due to their special design, disk stack centrifuges work at a higher rotation speed than other centrifuges such as decanters. As a result, the centrifugal acceleration (g-force) generated by a disk stack centrifuge is significantly more powerful than in decanter centrifuges. Moreover, the disks included provide a large clarifying area. Thus, it is possible to separate ultra fine solid particles from a liquid and to separate liquid mixtures in an efficient way.


    Technical paramete


    Model

    Capacity

    (L/h)

    Basket Diameter (mm)Rotation Rate of Drum (r/m)Separation factorPower (KW)

    Slag discharge

    way

    Weight

    (kg)

    Dimension

    (mm*mm*mm)

    ZYDH2702000270720069504automatic550865*645*1100
    ZYDH3153000315650070005.5automatic650900*600*1150
    ZYDH3854000385650075007.5automatic7501100*1050*1250
    ZYDH43050004306000805011automatic9001200*950*1400
    ZYDH47080004705800850018.5automatic11001250*1000*1550


    Main Feature


    • Super partial discharger (option) minimizes liquid loss and maximizes thickening of solid

    • fraction for discharge.

    • Vibration-proof design realizes long working life.

    • Full automation possible with PLC automatic control panel


    Main parts


    1. Access device

    2.drum

    3.paring disc device

    4.drive system

    5.stainless steel cover

    6.engine base

    7.Motor


    Application


    1.Dairy separatorr: skim milk or clarify milk (out of solid impurities). Small separation machine is hand-driven, artificial discharge, suitable for pastoral herdsmen's home use ; large separators for industrial production, electric drive, automatic or artifical discharge.


    2.Mineral oil separator: for fuel oil, diesel oil, lubricating oil and transformers oil etc similar emulsion,remove mechanical impurities and water.


    3.Vegetable oil separator: for vegetable oil refining.


    4.Animal oil separator: for refining animal fat in meat processing, or for fish oil concentration and separation processing.


    Photos

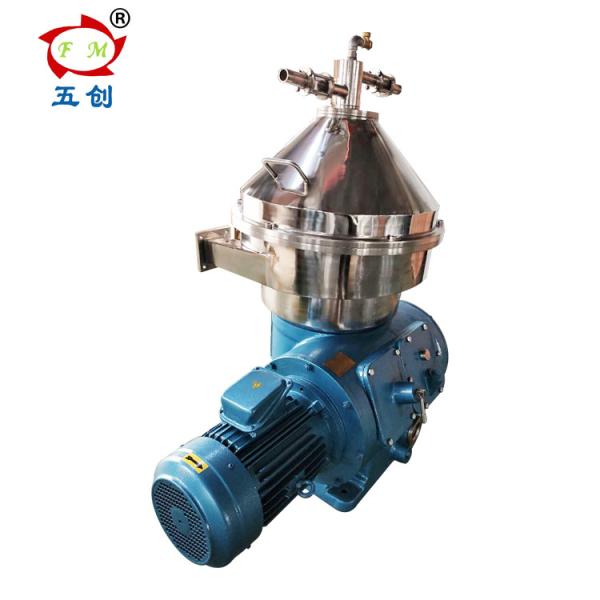

    prodcut-image
