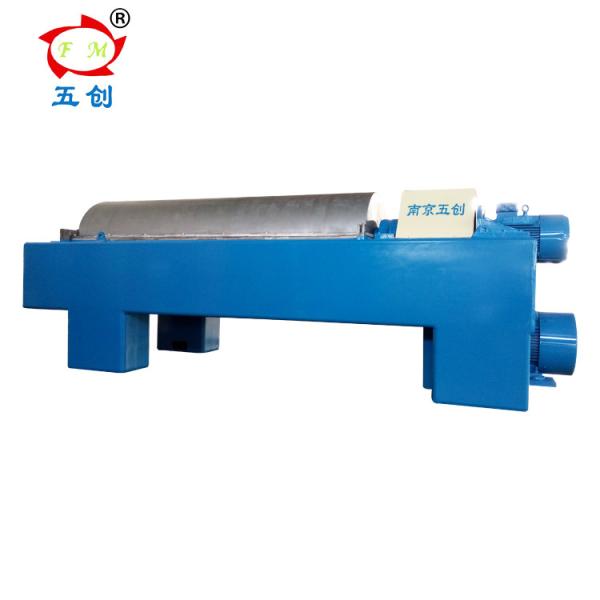

    china manufacturer industrial sludge filter system decanter centrifuge

    Ask Lasest Price
    Brand Name : Fivemen
    Model Number : LW180
    Certification : ISO
    Price : 20000USD-50000USD FOB Shanghai
    Payment Terms : L/C, T/T, Western Union, MoneyGram
    Supply Ability : 50 sets per month
    Delivery Time : 60 days after deposite
    • Product Details
    • Company Profile

    china manufacturer industrial sludge filter system decanter centrifuge

    china manufacturer industrial sludge filter system decanter centrifuge


    Product Description:


    Horizontal spiral centrifuge is one of our company main products. According to the requirement of the material used, we design the horizontal spiral centrifuge with one motor, two motors driving. At the same time, we design two motors separately on both sides of the machine and motors on the same place of the machine. We also develop three column horizontal spiral centrifuge, used in the separation of coal tar oil, water, slag in the industry, in petrochemical in the separation of oil, water, slag.


    Main motor drive at full speed rotating drum, material put into spiral continuously by feed tube, evenly distributed to the spiral discharging port. Under centrifugal force, solid content settles to the drum wall and is pushed out cone drum slag notch by the spiral pusher. Liquid is overflow along the spiral to the drum big end. It form big end set out liquid and small end set out solid.


    Tenchical parameters:


    Type:LW180
    Drum diameter:180mm
    Drum speed:6000r/min
    Length-diameter ratio:2.5

    Vibration speed

    ≤4.5 mm/s

    start method

    variable frequency starting

    Discharge wayautomatic
    operationautomatical continuous operation
    Electric control box:PLC double frequency conversion touch screen control
    Noise level:

    ≤90dB(A)


    working principle:


    Separation takes place in a horizontal cylindrical bowl equipped with a scroll conveyor. The processing material is fed into the bowl through a stationery inlet tube and is smoothly accelerated in the accelerate chamber. Centrifugal forces cause instant sedimentation of the solids on the wall of the bowl. The conveyor rotates in the same direction as the bowl, but at a different speed, thus moving the solids towards the conical end of the bowl.


    Main parts :


    The major parts are: ①rotary drum ②spiral feeder ③engine base ④stainless steel cover ⑤stainless steel cover ⑥absorber ⑦electrical machine.


    Application:


    Currently, our three-phase decanter centrifuges are used in the separation of olive oil , soybean oil , oils,


    water and slags / dregs in the coal tar industry, the petrochemical industry, the fish powder industry, the swill


    oil industry, the electrolytic copper industry, and the waste scraps in the slaughter houses.


    Packing and shipping:


    Machine freight by truck or container. Container machine be fixed by steel wire, to make sure all of them not be damage by transport jolt.


    http://www.centrifugalseparatormachine.comhttp://www.centrifugalseparatormachine.comhttps://www.youtube.com/watch?v=33wVNnQ0fOA


    http://www.centrifugalseparatormachine.comhttps://www.youtube.com/watch?v=GneE00nwRKM


    Click this video link to see the fish oil separator
