    Animal Oil And Vegetable Oil ,ISO Oil Separator Centrifuge Machine

    Ask Lasest Price
    Brand Name : Fivemen
    Model Number : ZYDH385
    Certification : ISO
    Price : USD 8000-14000 /Set
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 30 sets per month
    Delivery Time : 30 days after deposite
    • Product Details
    • Company Profile

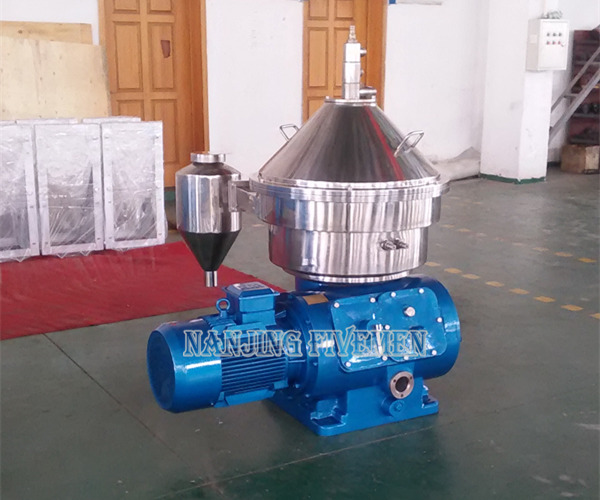

    Animal Oil And Vegetable Oil ,ISO Oil Separator Centrifuge Machine

    High Speed Oil Separator Centrifuge Machine For Animal Oil And Vegetable Oil


    Introduction:


    Separator has many advantages, such as separation factor high, running balance, simple operation, low oil consumption. In order to meet different requirements of production scale, the machine adopt bottom washing. Facilitate liquid seal and exclusive soap, the heart pump discharge the material, reducing system operating pressure. Regulate different specific gravity ring, can be suitable for all kinds of oil, so that better separation.


    1, There are stationary centripetal pumps for heavy phase and light phase output. Separated heavy phase and light phase are outputted respectively by the large and small centripetal pumps which on the top of the drum respectively.

    2, This series of separator outfits various specific gravity rings with different diameter, which can be used according to the density and volume of the materials.


    Techincal Parameters:

    Model

    Capacity

    (L/h)

    Basket Diameter (mm)Rotation Rate of Drum (r/m)Separation factorPower (KW)

    Slag discharge

    way

    Weight

    (kg)

    Dimension

    (mm*mm*mm)

    ZYDH2702000270720069504automatic550865*645*1100
    ZYDH3153000315650070005.5automatic650900*600*1150
    ZYDH3854000385650075007.5automatic7501100*1050*1250
    ZYDH43050004306000805011automatic9001200*950*1400
    ZYDH47080004705800850018.5automatic11001250*1000*1550

    Main parts :


    Main parts 1. Access device 2.drum 3.paring disc device 4.drive system 5.stainless steel cover 6.engine base 7.Motor

    (1). Machine starts the friction to start off, about six to ten minutes. The machine runs smoothly, low noise and vibration, the installation path is very easy to operate.

    (2) The main strengthen parts of Roller body and Roller cover use 2Cr13, and the other parts of contacted materials such as Disc all use 316L

    (3) The Stainless steel cover use SUS304

    (4) The base use casting steel, coating does the same way as ship bottom.


    Application :


    Three phase of plant oil centrifuge:


    crude oil refinery plant is the main equipment for a vegetable oil continuous refining system,


    can be used for plant oil refining,continuous degreasing, dephosphorization, de-soap,


    dehydration and other procedures.


    Reducing the harmful ingredients in vegetable oil, to meet national standards.


    For the coconut oil/ soybean oil / palm oil, we have exported to many countries.
