Manual Solid Discharge Disc Stack Centrifuge Separator For Milk Cream Separation

    Buy cheap Manual Solid Discharge Disc Stack Centrifuge Separator For Milk Cream Separation from wholesalers

    Buy cheap Manual Solid Discharge Disc Stack Centrifuge Separator For Milk Cream Separation from wholesalers
    • Buy cheap Manual Solid Discharge Disc Stack Centrifuge Separator For Milk Cream Separation from wholesalers
    • Buy cheap Manual Solid Discharge Disc Stack Centrifuge Separator For Milk Cream Separation from wholesalers

    Manual Solid Discharge Disc Stack Centrifuge Separator For Milk Cream Separation

    Ask Lasest Price
    Brand Name : Fivemen
    Model Number : SYDR302
    Certification : ISO/ CCS
    Price : USD 4000-40000 Per Set
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 60 sets per month
    Delivery Time : 20-30 days after deposite
    • Product Details
    • Company Profile

    Manual Solid Discharge Disc Stack Centrifuge Separator For Milk Cream Separation

    Manual Solid Discharge Disc Stack Centrifuge Separator For Milk Cream Separation


    Introduction:


    RPDR302 type separator is mainly composed of in and out device, drum, vertical shaft, belt transmission mechanism, frame motor, etc.Set the


    separate materials into the rotary drum disc group , Using the different density of liquid, liquid and solid in centrifugal field obtained a different


    centrifugal force to separate the material .Material in the drum light phase containing heavy components increased gradually from inside to


    outside .The centripetal pump output lighter liquid , impurities between piston and drum cover (drum max diameter) is piling up in the separation


    process .When impurities accumulated full of deposition chamber ,stop the machine, open the in and out device, the machine cover, drum cover


    .Discharge the slag by manual.


    Feature:


    RPDR302 type separator is mainly used to separate the two different density liquid . the separator are mainly used for the separating test of


    incompatible liquid-solid or liquid –liquid –solid materials, featuring compact size, light weight,High efficiency , less material loss ,convenient


    installation, simple operation .This machine is best choice for the material with less Mechanical impurity . they are ideal for use in universities and


    scientific research institutes.


    This machine test by the precise dynamic balance, little vibration, can run for a long time, safe and reliable for use. Interface is simple, save much


    space for the user .


    Technical paramete:


    Model

    Rated Capacity

    (L/H)

    Drum speed

    (r/min)

    Motor Power

    (KW)

    Deslagging ModeSeparating factor

    Net Weight

    (kg)

    SYDR30210-30095001.1manually1000080

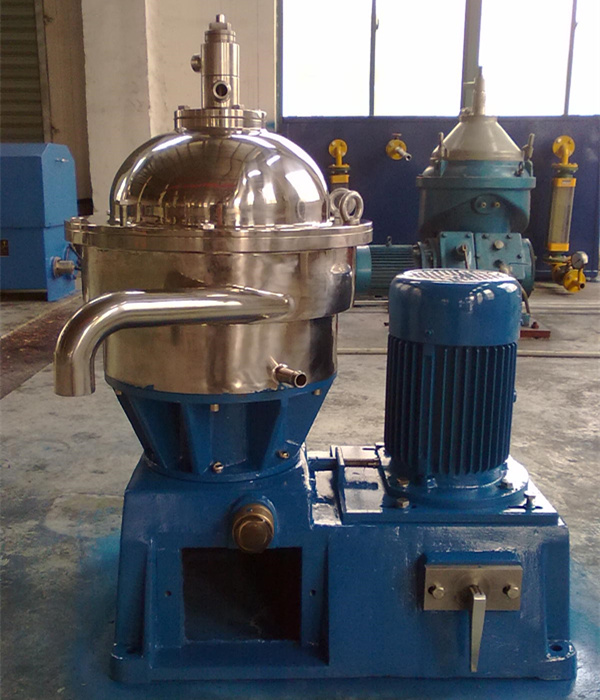

    Photos:



    Quality Manual Solid Discharge Disc Stack Centrifuge Separator For Milk Cream Separation for sale
