    GF Tubular Centrifuge Virgin Coconut Oil Centrifuge Separator

    Ask Lasest Price
    Brand Name : fivemen
    Model Number : GF105
    Certification : ISO/CE
    Price : USD 5000-8000 Per set
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 60 sets per month
    Delivery Time : 20-30 days after deposite
    • Product Details
    • Company Profile

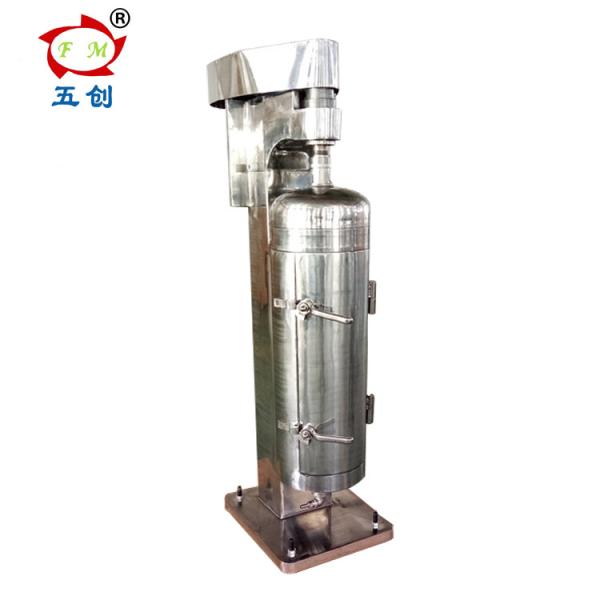

    GF Tubular Centrifuge Virgin Coconut Oil Centrifuge Separator

    GF Tubular Centrifuge Virgin Coconut Oil Centrifuge Separator



    Introduction:


    Tubular centrifuge has high performance of separate factor, high capacity, and account for small area and easy to handle, it has been widely used in pharmaceutical, health food, drinks, chemical industries to separate the liquid-solid or liquid-liquid-solid materials. It is an ideal centrifuge take advantage of centrifugal methods, the minimum granules is 1 um, which is suitable for distill, condense and clarify the material has small gravity difference, small and few solid granules and high erosion products.


    Feature:


    1) Simple structure in linear type ,easy in installation and maintation.

    2) Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.

    3) SKF Bearing

    4) High speed, high separation factor

    5) the good effect

    The centrifuge has high performance of separate factor, high capacity, and account for small area and easy to handle, it has types, one is GQ two phase that can separate solid from the liquid, another is GF series, which can separate the water, solid from the oil.



    Technical Parameters :

    GF105
    GF145
    Drum speed
    16300 r/min
    14000 r/min
    Max centrifugal force
    15750 R.C.F
    16900
    Drum inner diameter
    105 mm
    145 mm
    Drum effective length
    730 mm
    770 mm
    Solid volume in drum
    6 L
    8 L-12L
    Stuff inlet pressure
    <0.1Mpa
    <0.1Mpa
    Output (water flux)
    1500 L/H
    2500 L/H
    Motor power
    3 KW
    3 KW
    Specification
    760*450*1680 mm
    890*580*1670 mm
    Weight
    400kg
    700kg

    Coconut oil Application
