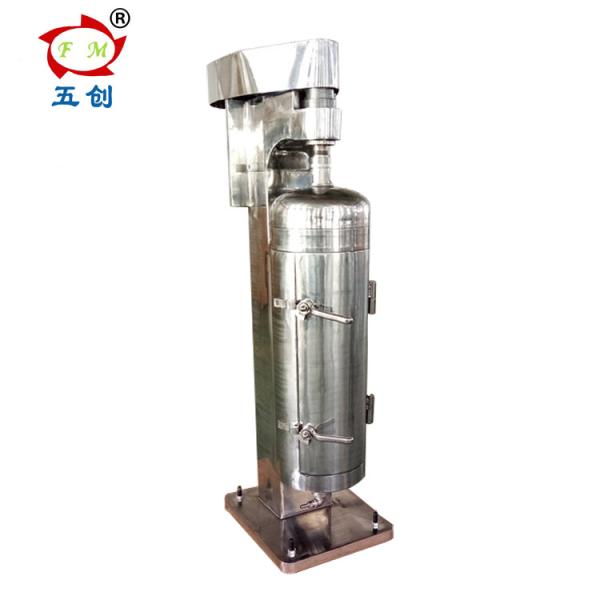

    GF145 Tubular Corn Oil Centrifuge Separator Machine 14000 R/Min Speed

    Ask Lasest Price
    Brand Name : fivemen
    Model Number : GF145
    Certification : ISO
    Price : USD 5000-8000 Per set
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 60 sets per month
    Delivery Time : 20-30 days after deposite
    • Product Details
    • Company Profile

    GF145 Tubular Corn Oil Centrifuge Separator Machine 14000 R/Min Speed

    GF145 Tubular Corn Oil Centrifuge Separator Machine 14000 R/Min Speed


    Introduction:


    Tubular centrifuge has high performance of separate factor, high capacity, and account for small area and easy to handle,


    it has been widely used in pharmaceutical, health food, drinks, chemical industries to separate the liquid-solid or


    liquid-liquid-solid materials. It is an ideal centrifuge take advantage of centrifugal methods, the minimum granules


    is 1 um, which is suitable for distill, condense and clarify the material has small gravity difference, small and few


    solid granules and high erosion products.


    Feature:


    1, High speed and high separation factor


    2, manual operation


    3, running balance, simple operation, low oil consumption


    4, Speed can be adjustable


    5, High separation efficiency


    6, Suitable for low capacity and price is lower


    Working Principle:


    Machine body, drive system, drum, and liquid tray, enter liquid bearing seat composed of pipe centrifuge.


    On the top of drum is the flinch axis, under is the damp drift bearing. Main axis linked by buffer and


    passive wheel, via conveyor belt, fasten wheel, the dynamic is transmit to drum and it will rotate axes to run at rapid speed.


    The stuff is ripped into via liquid inlet, under the centrifuge force, the stuff along the wall of drum flow upward.


    As different material has different density, the stuff will separate layer in the centrifuge.


    Technical Parameters :


    GF105GF145
    Drum speed16300 r/min14000 r/min
    Max centrifugal force15750 R.C.F16900
    Drum inner diameterφ105 mmΦ145 mm
    Drum effective length730 mm770 mm
    Solid volume in drum6 L8-12L
    Stuff inlet pressure<0.1Mpa<0.1Mpa
    Output (water flux)1500 L/H2500 L/H
    Motor power3KW3 KW
    Specification760×450×1680 mm890*580*1670 mm
    Weight395kg700kg
