    Spirulina Algae Tubular Centrifuge Separator 742 Mm Drum Effective Length

    Spirulina Algae Tubular Centrifuge Separator 742 Mm Drum Effective Length


    Introduction:

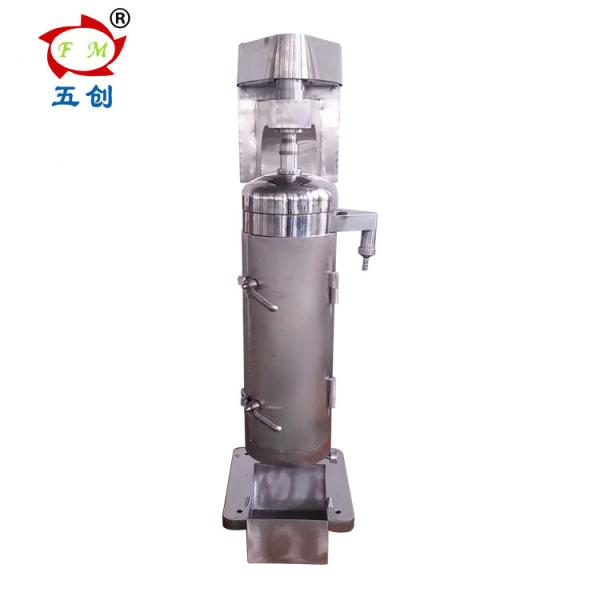

    The vertical centrifugal consists of machine body, driving part, bowl, liquid collecting pan and liquid-in bearing seat etc.

    The material is sprayed onto the bowl from the inlet on the bottom and strong centrifuge force is formed when the bowl rotates with the material and that makes the material flow upper along the wall of the bowl and then separated because of the different gravity by the centrifuge force.


    Technical Paramters :


    ModelGQ75GQ105GQ145
    Drum speed(r/min)200001600014000
    Max centrifuge force(R.C.F)167001505015900
    Drum inner diameter(mm)75105145
    Drum effective length(mm)285742730
    Solid volume in drum(L)269
    Stuff inlet pressure (kg)>1.5>1.5>1.5
    Capacity(water flux)(L/h)20~20020~1200500~1500
    motor powder(KW)1.533
    Dimensions(mm*mm*mm)660*390*1200760*450*1680890*580*1670
    Stuff inlet diameter(mm)121212
    liquid outlet diameter(mm)323832
    liquid outlet height(mm)630880~940


    Feature:


    1, High speed and high separation factor


    2, manual operation


    3, running balance, simple operation, low oil consumption


    4, Speed can be adjustable


    5, High separation efficiency


    6, Suitable for low capacity and price is lower


    Working Principle:


    Machine body, drive system, drum, and liquid tray, enter liquid bearing seat composed of pipe centrifuge.

    On the top of drum is the flinch axis, under is the damp drift bearing. Main axis linked by buffer and

    passive wheel, via conveyor belt, fasten wheel, the dynamic is transmit to drum and it will rotate axes to run at rapid speed.

    The stuff is ripped into via liquid inlet, under the centrifuge force, the stuff along the wall of drum flow upward.

    As different material has different density, the stuff will separate layer in the centrifuge.


    Application:


    1. agglomerated proteins


    2. aluminum silicate


    3. animal cell fraction


    4. antibiotics


    5. bacteria
