KYDH Disc Continuous Mineral Oil And Fuel Oil Centrifuge Separator

---------------------------------------------------------Introduction--------------------------------------------------------------------------

KYDH series marine oil and fuel oil centrifuge separator are mainly applied in:

1. the purification and clarification of the diesel, light fuel oil, heavy fuel oil

2. other mineral oil.used to remove the water, moisture, mechanical impurities

3. some harmful substances of the oil.

KYDH series separator is mainly applied in the purification and clarification of the diesel, light fuel oil, heavy fuel oil and other mineral oil, to

remove the water, moisture, mechanical impurities and some harmful substances of the oil. This model is automatic slag type, high separation

efficiency, no need to disassemble to slag. It can be automatic controlled according to requirement which greatly reduce the labor intensity of the

operating. This machine by the accurate calibration balancing, little vibration, can be long-running and operated safety and reliable.

---------------------------------------------------------Feature--------------------------------------------------------------------------

1, High speed and high separation factor

2, continuous operation

3, running balance, simple operation, low oil consumption

4, Common Start control box and Siemens PLC control box with LED touch screen

5, Self-discharging , self-cleaning

6, Full-automatic vibration detector can monitor the vibration strength value of the centripetal pump at any time.

7. Can be automatic controlled according to requirements which greatly reduce the lab orintensity of the operating.

---------------------------------------------------------Structure--------------------------------------------------------------------------

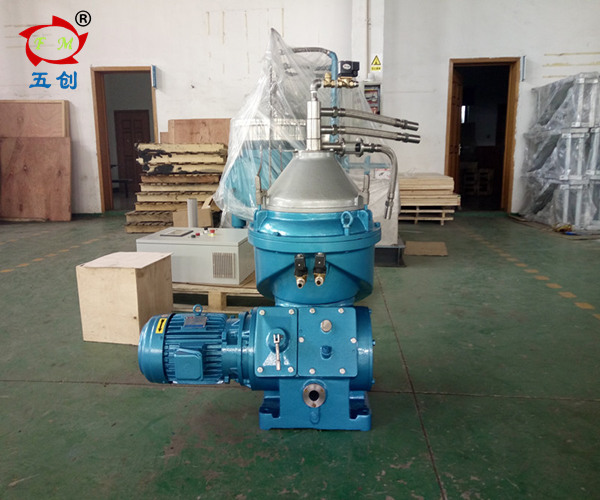

Main parts 1. Access device 2.drum 3.paring disc device 4.drive system 5.stainless steel cover 6.engine base 7.Motor

(1). Machine starts the friction to start off, about six to ten minutes. The machine runs smoothly, low noise and vibration, the installation path is very easy to operate.

(2) Usually, the material uses SUS304. But if the material is corrosion, the main strengthen parts of Roller body and Roller cover use dual-phase

steel, and the other parts of contacted materials such as Disc all use 304 stainless steel.

(3) The base use casting steel, coating does the same way as ship bottom.

---------------------------------------------------------Technical Parameters ------------------------------------------------------------

---------------------------------Separation conditions and actual productivity of mineral oil --------------------------
