10m3/H Soybean Protein Gravity Solid Bow Industrial Decanter Centrifuge

    Buy cheap 10m3/H Soybean Protein Gravity Solid Bow Industrial Decanter Centrifuge from wholesalers

    Buy cheap 10m3/H Soybean Protein Gravity Solid Bow Industrial Decanter Centrifuge from wholesalers
    • Buy cheap 10m3/H Soybean Protein Gravity Solid Bow Industrial Decanter Centrifuge from wholesalers
    • Buy cheap 10m3/H Soybean Protein Gravity Solid Bow Industrial Decanter Centrifuge from wholesalers
    • Buy cheap 10m3/H Soybean Protein Gravity Solid Bow Industrial Decanter Centrifuge from wholesalers

    10m3/H Soybean Protein Gravity Solid Bow Industrial Decanter Centrifuge

    Ask Lasest Price
    Brand Name : Fivemen
    Model Number : LW450
    Certification : ISO/CE/EAC
    Price : 20000USD-35000USD FOB Shanghai
    Payment Terms : L/C, T/T, Western Union, MoneyGram
    Supply Ability : 50 sets per month
    Delivery Time : 60 days after deposite
    • Product Details
    • Company Profile

    10m3/H Soybean Protein Gravity Solid Bow Industrial Decanter Centrifuge

    LW China Industrial Soya Protein Decanter Centrifuge For Whey Protein Extraction


    Product Description:


    Decanter centrifuge is a horizontal centrifuge with continuous feeding and continuous discharging. The settling speed is determined by particle size,particle shape,difference in density between solids and liquids as well as their viscosity.


    Tenchical parameters:


    TypeBowl diameter(mm)Bowl length/ Bowl diameter

    Bowl speed

    (r/min)

    Main Power(Kw)
    LW1801802.5-72060003-5.5
    LW2602603.0-450007.5-11
    LW3553552-4.5400011-30
    LW4204203-4.1360018.5-37
    LW4504502-4.4360018.5-37
    LW4804802-4.2320018.5-45
    LW5005002-4.2320018.5-55
    LW5305302-4320022-55
    LW5805802-4280030-55
    LW6206202-4280037-110
    LW7607602-3.5250055-132
    Note: In case of differences between the table and the user manual, the latter shall prevail.

    Applications:


    1) Fruit juice separation


    2) soybean protein, soybean milk


    3)City tap water, domestic sludge dewatering;


    4) Oil drilling mud dewatering;


    5) Sludge Oil Recovery;


    6) Refinery sludge concentrated dehydration;


    7) Distiller ‘s grains dehydration;

    8) Plant oil clarification and separation;


    9) Paper, printing and dyeing wastewater separation;


    10) Medical sludge dewatering;


    11) Soy protein dehydration;


    10) Cosmetic clarification and separation;


    11) Bleaching powder separation.

    Materials:

    The bowl, conveyor, inlet tube, outlets, cover and other parts in direct contact with the process media are all made of stainless steel. The discharge ports, conveyor flights and feed zone are protected with materials that are highly resistant to erosion. The frame is made of mild steel with an epoxy enamel finish.

    Feature:
    All contact parts can be made by sus 304 / SS316L / Duplex Steel 2205
    Automatic adjustment of differential speed via VFD . Siemens PLCa Spiral : Surfacing welding tungsten carbide grinding
    Two motor drivea Approximately 80% to 95% of the oil is recovered
    Low labor costs due to continuous and automatic operation
    Highest g-force for higher solids output
    Belts for both primary motor and secondarya
    NSK / SKF Bearing

    Basic principle:


    The solid drum is internally installed with a concentric discharge screw As they rotate in the same direction at a high speed, They have a certain rotational speed difference, which is caused by the driving system and the differential case Suspension enters the internal of the charge screw through the speed pipe and then goes into the drum after being accelerated Under the centrifugal force, solid particles of big density settle on the inwall of the drun, and form a circular layer of cake, which is continuously pushed by the discharge screw to the small end of the drum end then out of it, while the set:led liquid is continuously discharge out of the drum from the vortex finder of the big end of the drum, hence solid-liquid sparation of suspension.

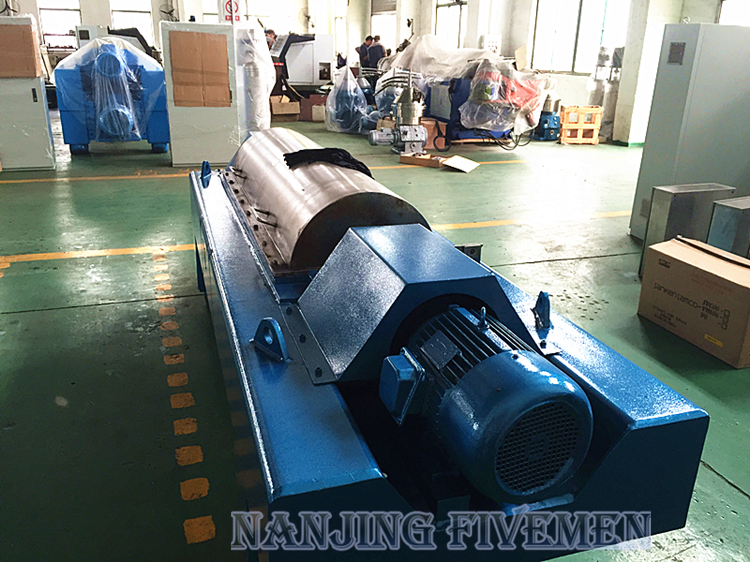

    Photos:




    Shipping Photos:


    Our service:


    1. 12 months guarantee period from machine arriving date.

    2. Our technicians could be dispatched for overseas service.
    3. Abundant spare parts in stock are available to provide.
    4. 7*24 hours technical consultation.
    5. Your workers could get trained both in our factory and yours.
    6. Routine tracing till the machine work properly will be done timely.
    7. We will remind you to do the normal maintenance.
    8. Your suggestions or any comments & reflection would be treated in priority.
    9. Marketing team will visit you during our visit in your country if you require.


    Our Company:


    Nanjing FiveMen Machine CO., LTD is professionally engaged in design, manufacture, sale and installation of kinds of separators. We are one of the world's leading manufacturers of disc centrifuges, decanters, separation systems and marine equipment. We focus on food production, environmental protection, energy recycling, chemistry and marine.


    Our Service:


    1. 12 months guarantee period from machine arrive date.


    2. Abundant spare parts in stock are available to provide.


    3. Our technicians could be dispatched for overseas service.


    4.7* 24 hours technical consultation.


    5.Your workers could get trained both in our factory and yours.


    6.Routine tracing till the machine work properly will be done timely.


    7.We will remind you to do the normal maintenance.


    8.Your suggestions or any comments & reflection would be treated in priority.


    9.Marketing team will visit you during our visit to your country if your require.
